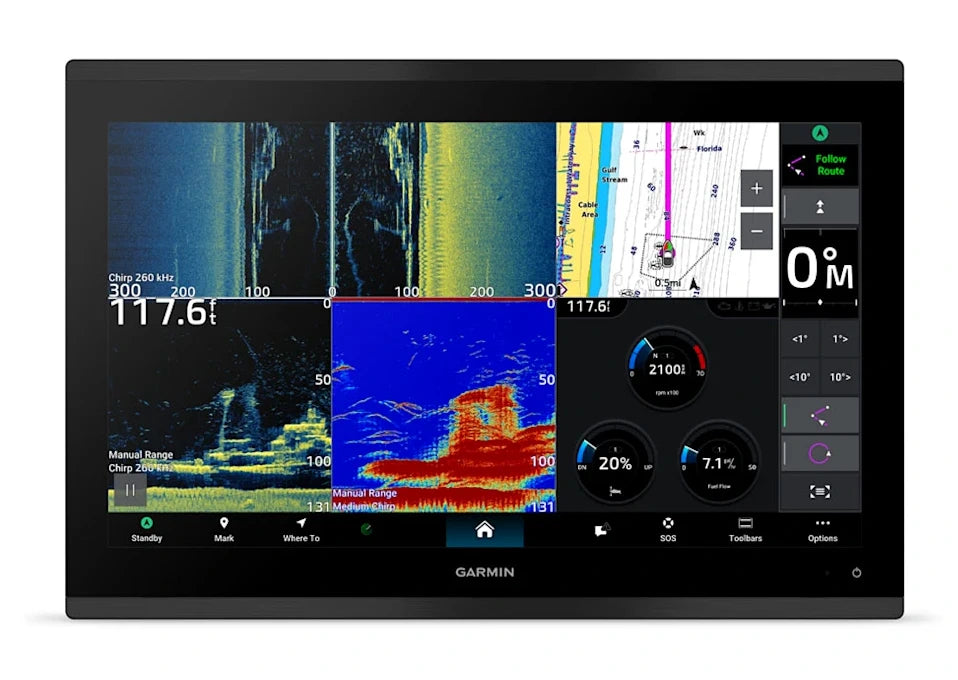

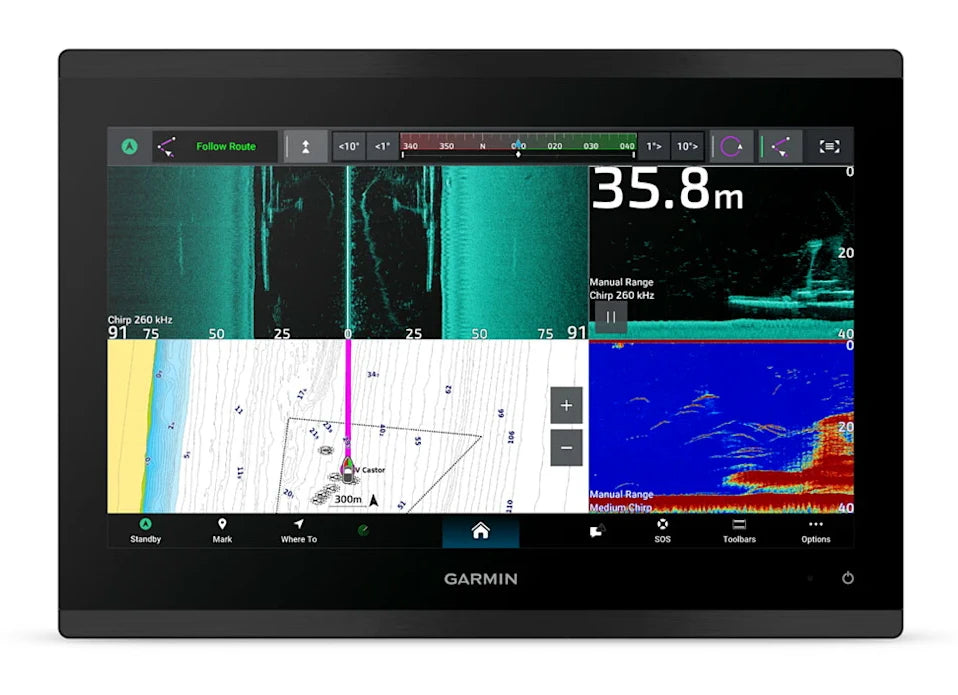

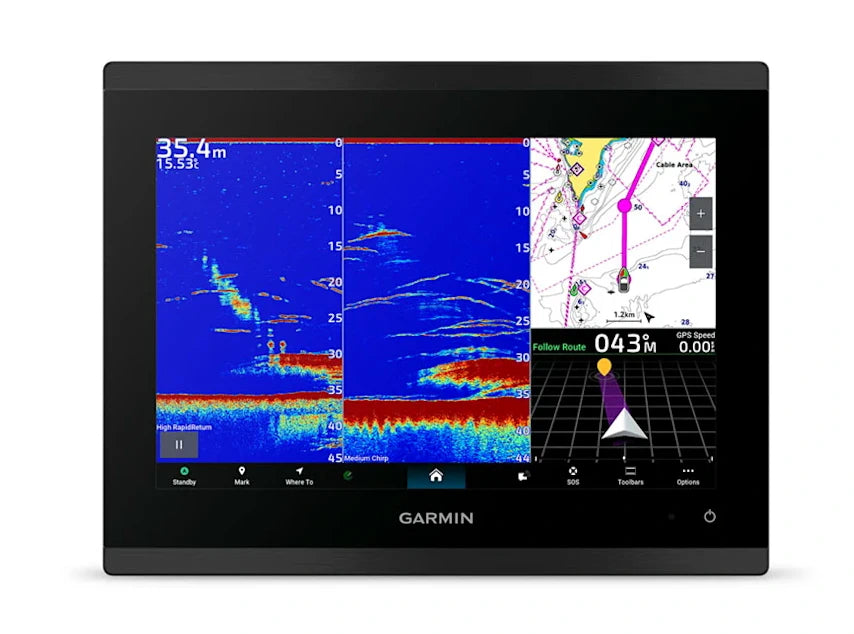

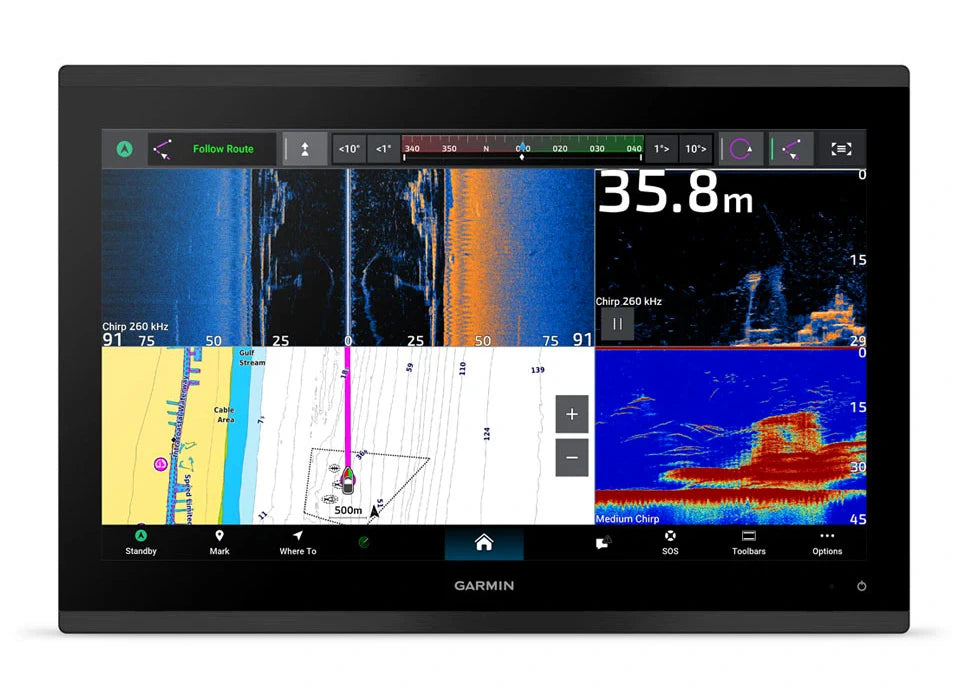

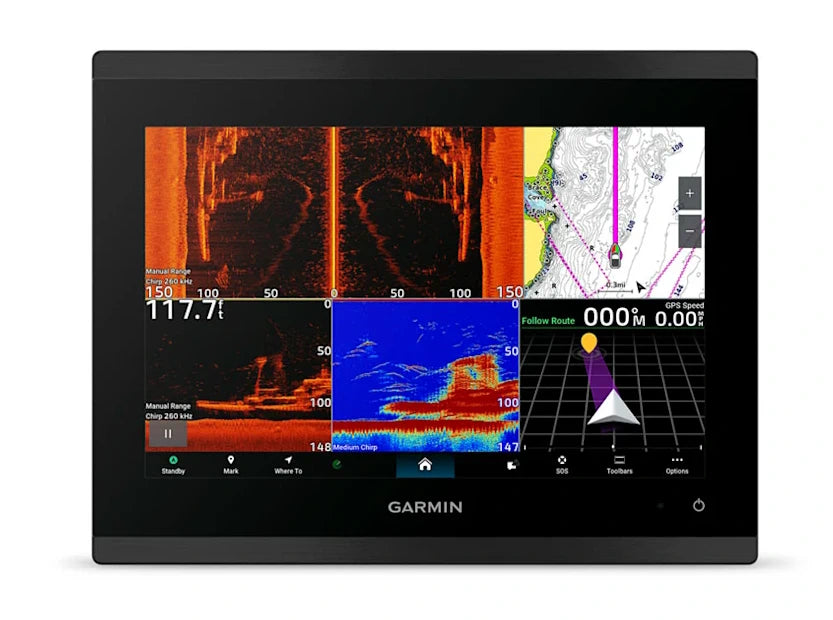

GPSMAP® 9000XSV Premium Chartplotter

PRODUCT OVERVIEW

The GPSMAP 9000xsv series are integrated touchscreen chartplotters designed for captains who demand the best and for anglers who need our best-in-class sonar ever. Enjoy edge-to-edge clarity with 4K resolution on the 13′′ and 17′′ glass helms with mini LED local dimming backlight and premium materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5 GHz Wi-Fi® connectivity for ActiveCaptain® app updates plus the Garmin BlueNet network.

KEY FEATURES

PREMIUM CHARTPLOTTER
Premium 4K IPS sunlight-readable touchscreen display available on the 13” and 17” models; 10” models feature a full HD display.

FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+™ routes¹ with lightning speed with a Garmin Navionics+™ subscription.

GARMIN BLUENET™ NETWORK
Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.

HIGH-DEFINITION SONAR (XSV MODELS)
The xsv models come with built-in 1kw xCHIRP and Garmin RapidReturn™ sonar for fishing in stunning high definition. Excellent target separation helps you see crisp and clear fish targets all around.

GARMIN SAILING FEATURES
Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features.

CONNECT YOUR ECOSYSTEM
Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.

GPSMAP 9x10
Includes: Chartplotter, microSD preinstalled, power cable, 2-meter backbone/drop cable and T-connector for the NMEA 2000® network, flush mount kit, bail mount, protective cover and documentation

• Gift box dimensions: 13.8′′ x 9.8′′ x 8.9′′  (35.0 x 25.0 x 22.6 cm)
• Gift box weight: 13.33 lbs (6.05 kg)
• Unit Dimensions: 10.24” x 7.87” x 3.54”  (26.0 cm x 20.cm x 9.1 cm)
• Display size: 8.54” x 5.34” x 10.1” diagonal  (21.7 cm x 13.6 cm x 25.6 cm diagonal)
• Display resolution: 1920 x 1200 pixels
• Display type: WUXGA, IPS; Edge lit backlight
• Weight:  5.55 lbs (2.52 kg)
• Accepts data cards: 2 microSD cards
• Mounting options:  Bail, flush or flat

GPSMAP 9x13
Includes: Chartplotter, microSD preinstalled, power cable, 2-meter backbone/drop cable and T-connector for the NMEA 2000® network, flush mount kit, bail mount, protective cover and documentation

• Gift box dimensions: 17.2′′ x 11.5′′ x 8.9′′  (43.8 x 29.2 x 22.6 cm)
• Gift box weight: 18.25 lbs (8.28 kg)
• Unit Dimensions: 13.2” x 9.19” x 3.56”  (33.5 cm x 23.4 cm x 9.1 cm)
• Display size: 11.57” x 6.50” x 13.27” diagonal  (29.4 cm x 16.5 cm x 33.7 cm diagonal)
• Display resolution: 3840 x 2160 pixels
• Display type: 4K, IPS; Mini LED (local dimming)
• Weight:  9.1 lbs. (4.13 kg)
• Accepts data cards: 2 microSD cards
• Mounting options:  Bail, flush or flat

GPSMAP 9x17
Includes: Chartplotter, microSD preinstalled, power cable, 2-meter backbone/drop cable and T-connector for the NMEA 2000® network, flush mount kit, protective cover and documentation

• Gift box dimensions: 21.7′′ x 7.4′′ x 14.4′′  (55.0 x 18.8 x 36.6 cm)
• Gift box weight: 21.41 lbs (9.71 kg)
• Unit Dimensions: 16.80” x 11.23” x 3.60”  (42.7 cm x 28.5 cm x 9.2 cm)
• Display size: 15.04” x 8.50” x 17.25” diagonal  (38.2 cm x 21.5 cm x 43.8 cm diagonal)
• Display resolution: 3840 x 2160 pixels
• Display type: WUXGA, IPS; Edge lit backlight
• Weight:  5.55 lbs (2.52 kg)
• Accepts data cards: 2 microSD cards
• Mounting options:  Flush or flat
