0 DEGREE LIVESCOPE PLUS LVS34 POLE MOUNT

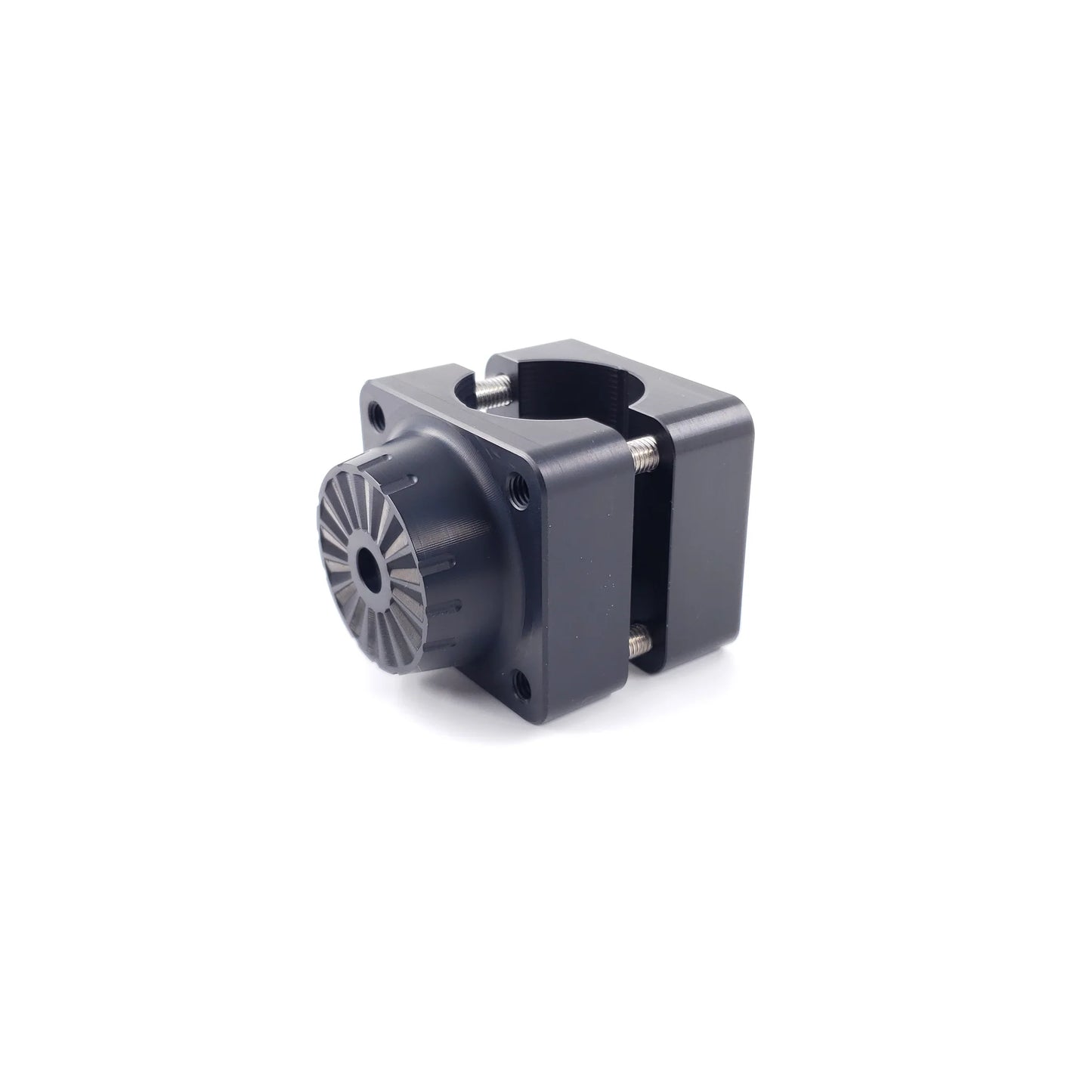

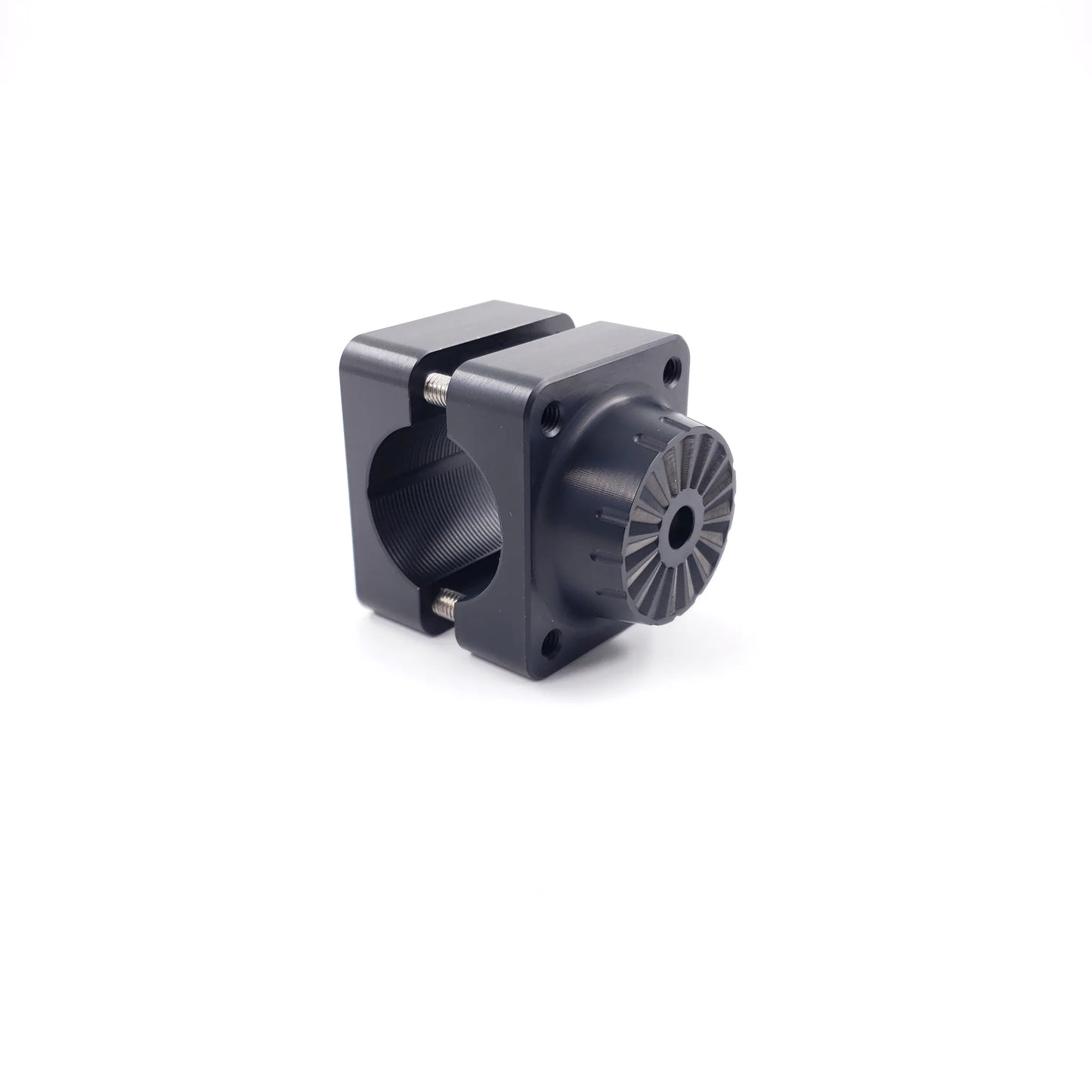

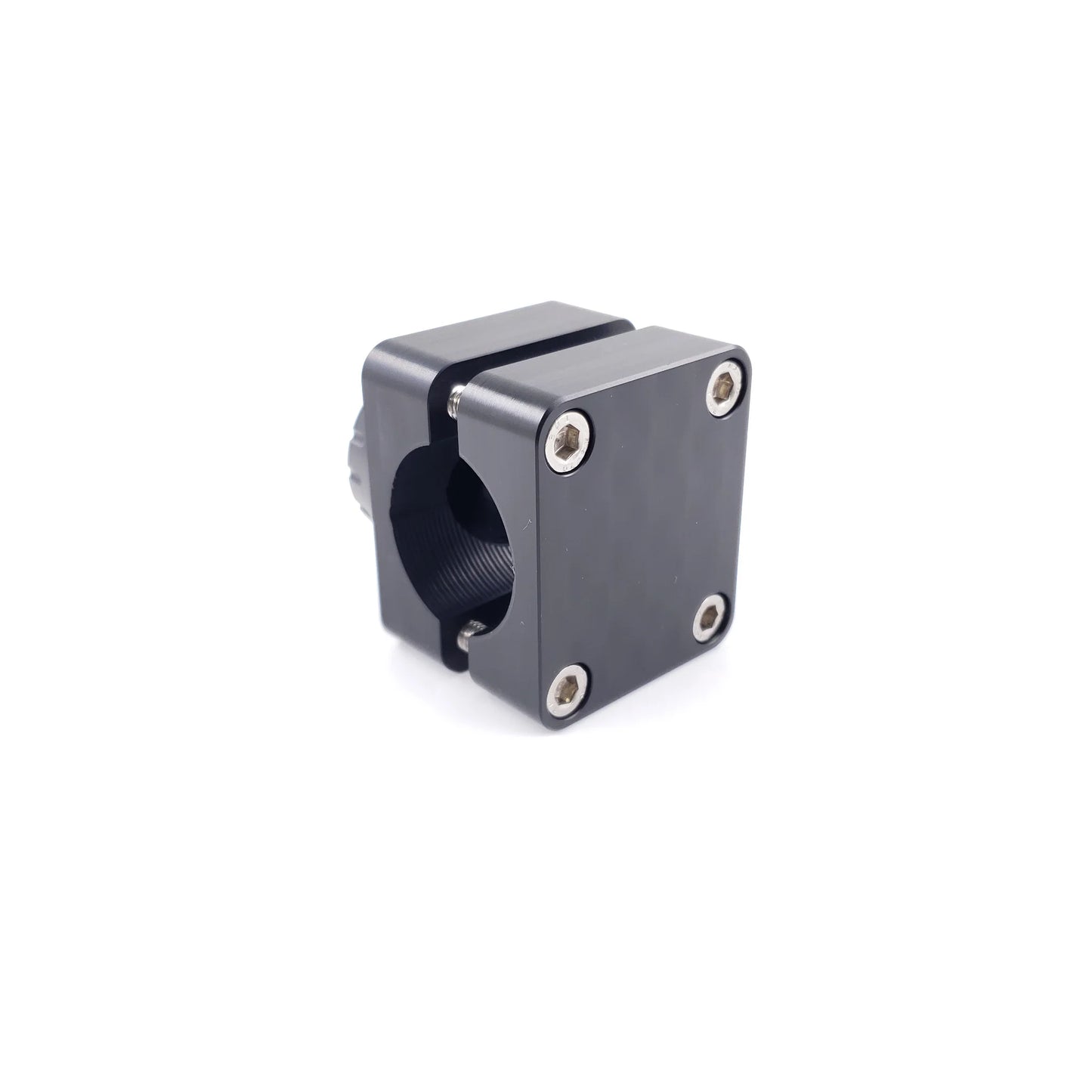

PART NUMBER:  TMA-LVS34-008 (MOUNT ONLY)

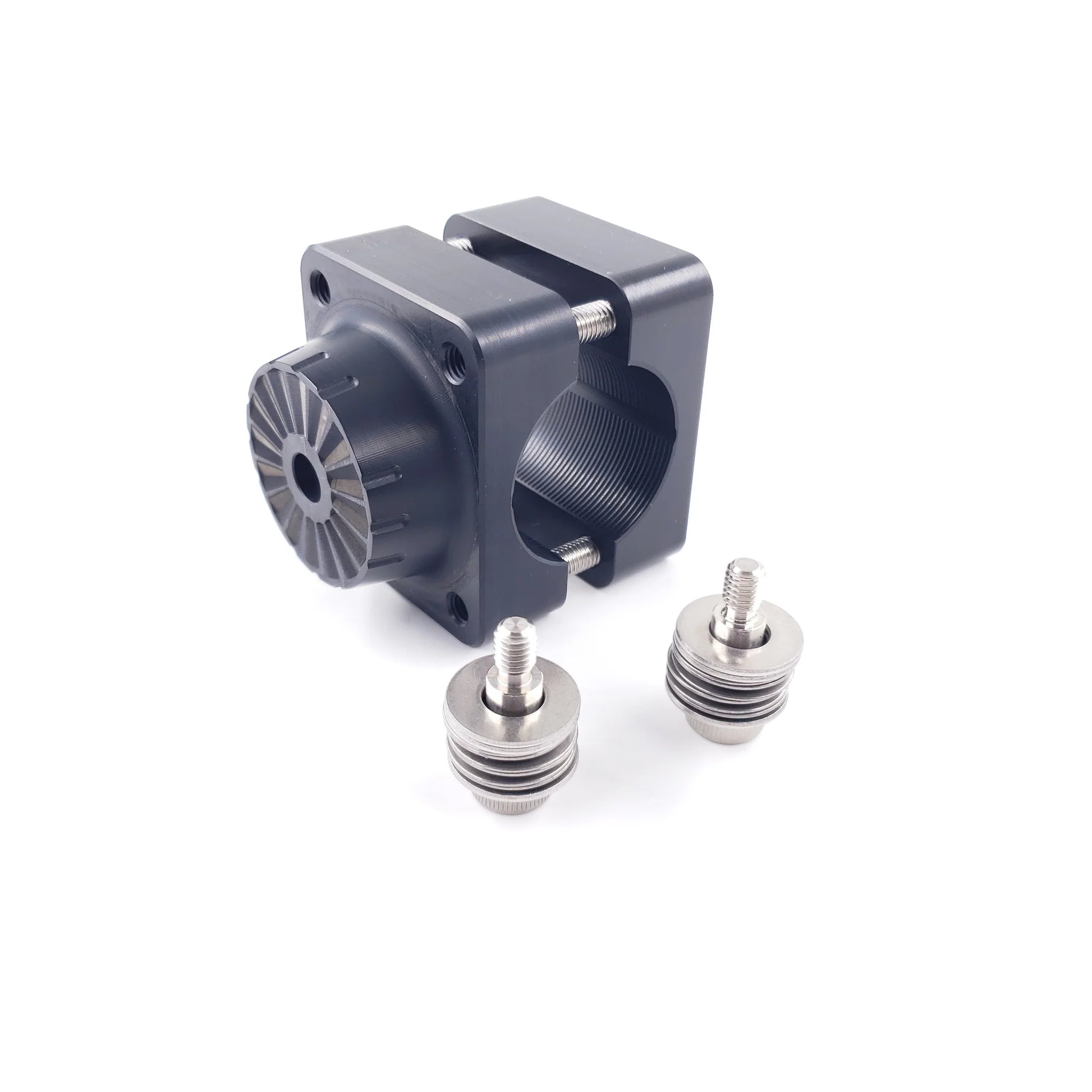

PART NUMBER:  TMA-LVS34-008HDDR (MOUNT WITH REPLACEMENT HDDR DOMINATOR AXLE ASSEMBLIES)

CONTENTS:

• LVS34 transducer side clamp half
• Back side clamp half
• 4 each  stainless socket head cap screws
• LVS34 transducer connecting hardware

• Optional-2 each HDDR DOMINATOR axle assemblies

Note:  No stock hardware is used for installation. This mount is designed to be thumbscrew and tool free! The necessary hardware for attaching your transducer to the mount is included. (NOT PICTURED)

  Current LVS32 Dominator users looking at doing a conversion should consider updating to HDDR axle assemblies inside their mount. (spring loaded pivot points) The LVS34 transducer is heavier and depending on usage may require additional spring pressure to keep the transducer in place.

 Read more about HDDR Dominator axle assemblies Here

The zero degree/straight clamps that we offer corrects the transducer geometry problem associated with the 8 degree clamp that came with the livescope kit, allowing you to have your sonar image, GPS position and transducer targets lined up.  This improves the accuracy of your readings in vertical and forward/downward mode, making it simple and intuitive to get on the fish you are seeing as well as locate your lure or bait on the sonar screen.

• 1-1/8"-1-3/8 clamping

• Fully CNC machined from solid  bar stock
• Can be used with your existing FishObsessed Dominator mount
• Proudly made in the U.S.A by Fish Obsessed machinists

Note: THIS PRODUCT IS PART OF THE FISH OBSESSED CATEGORY "1375 SERIES TRANSDUCER MOUNTS GARMIN LIVESCOPE PLUS LVS34" AND IS ORGANIZED TO DISPLAY ONLY ITEMS FOR 1-1/8" (1.125")  T0  1-3/8" (1.375")  POLE DIAMETER/SHAFT CLAMPING RANGE. PRODUCTS ARE COMPATIBLE WITH MOST TROLLING MOTORS.  THEY ARE NOT COMPATIBLE WITH MINN KOTA QUEST, POWERDRIVE, ULTERRA, TERROVA, OR MOTORGUIDE XI MODELS
