Garmin

GT360UHD Transducer for Spy™ Pole

GT360UHD Transducer for Spy™ Pole

In stock

GM-010-03012-10

$999.99
$999.99
Sale
Shipping calculated at checkout.
  Lease to own   Pay as low as   $/week
View full details

SEE THE UNDERWATER WORLD LIKE NEVER BEFORE

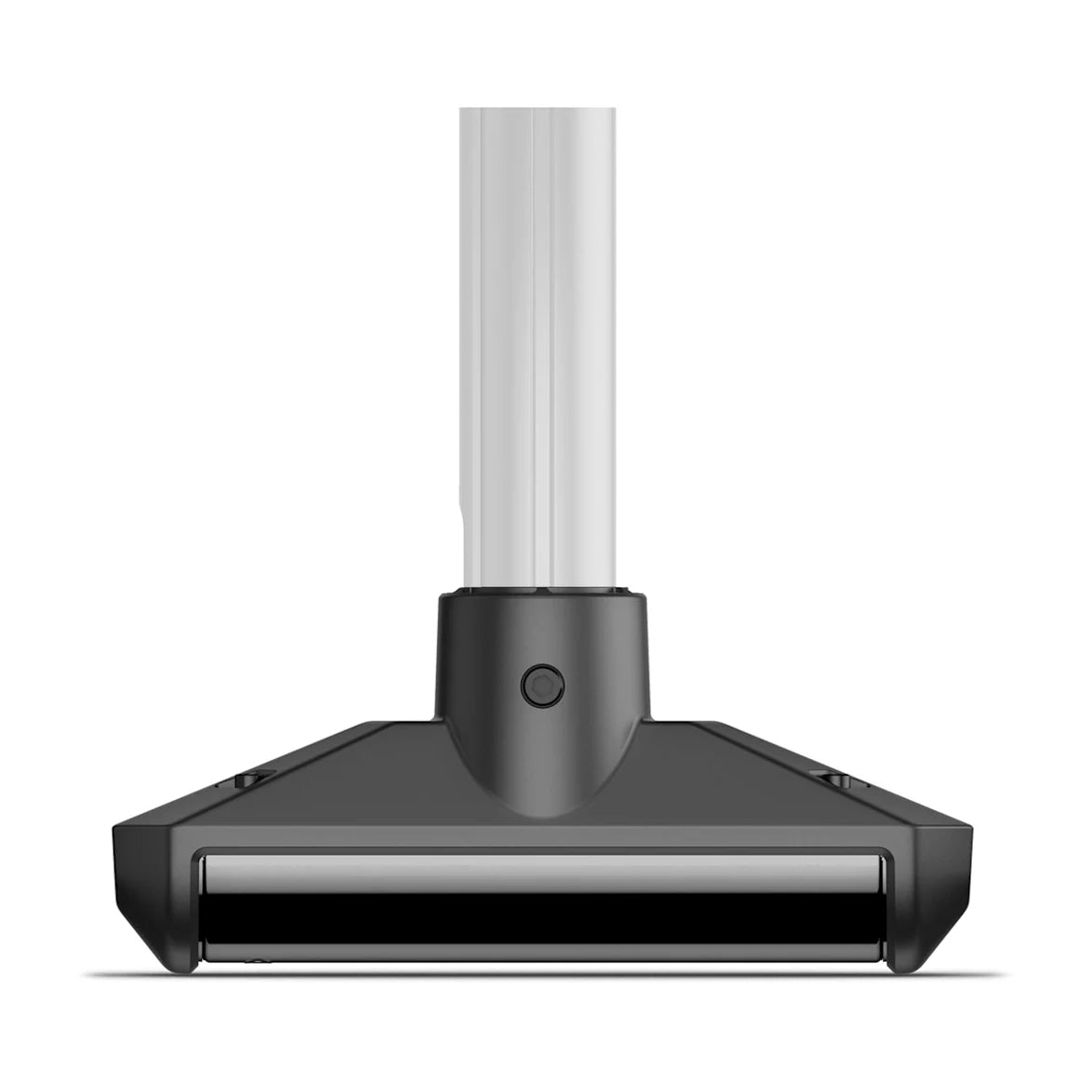

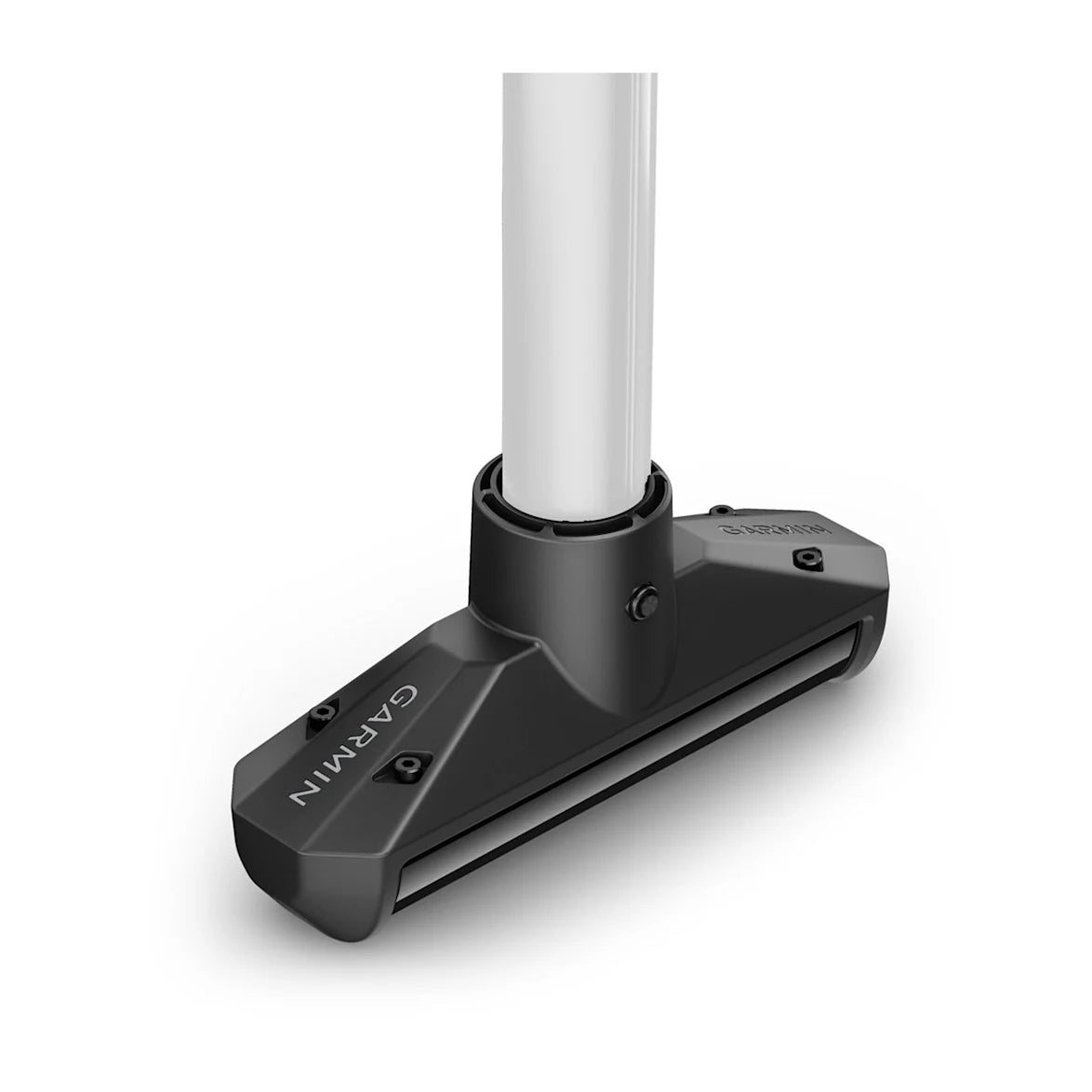

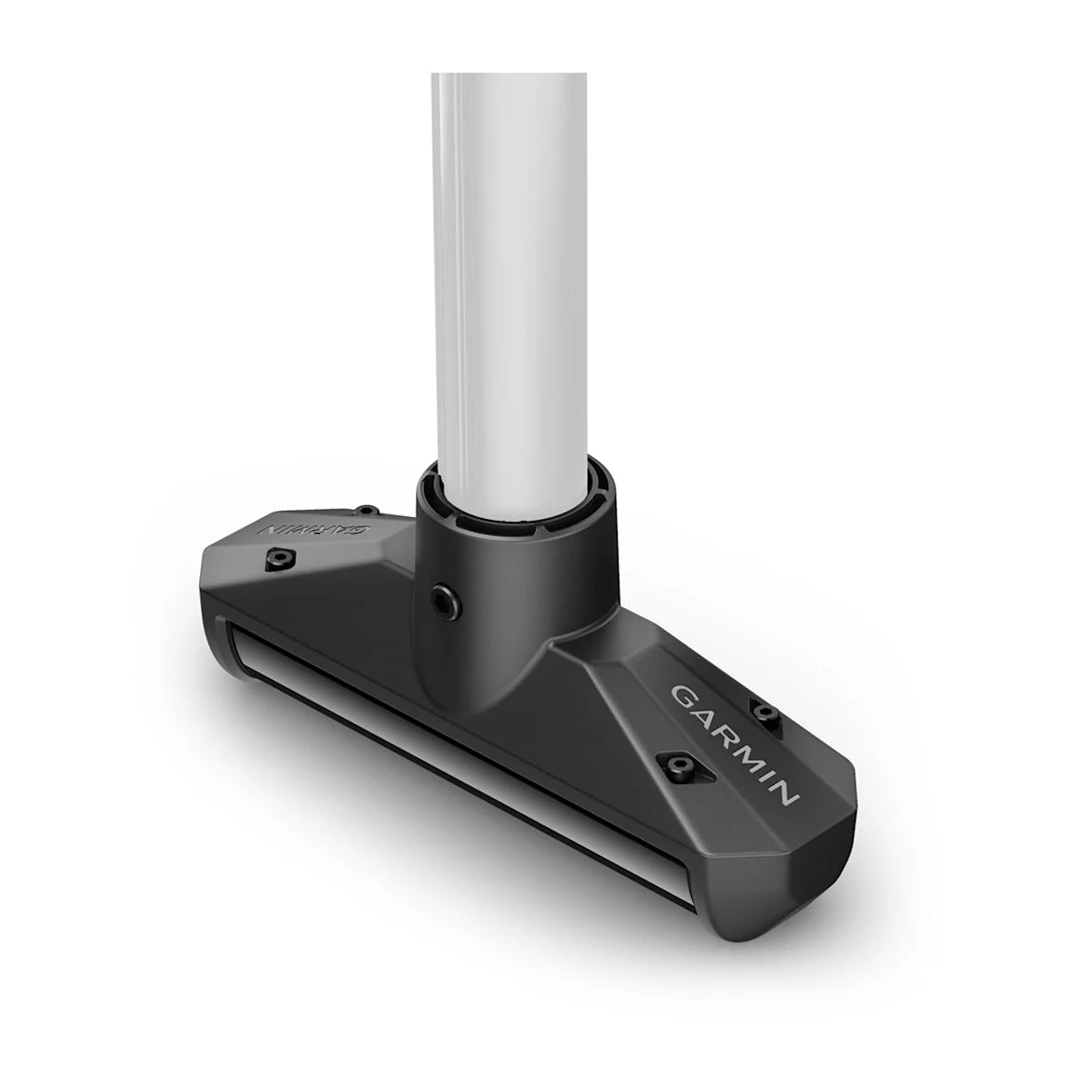

Capture 360-degree imagery of the area around your boat with the GT360UHD transducer when mounted to your Spy™ pole.

  • CAPTURE CRISP, CLEAR 360-DEGREE IMAGERY
  • SEE A BIRD'S-EYE VIEW OF WHAT’S BENEATH THE SURFACE
  • PAIR WITH YOUR COMPATIBLE GARMIN CHARTPLOTTER
  • GET A LIVE WINDOW INTO 3D IMAGERY WITH LIVESCOPE™ SONAR
  • TRUE MOTION TECHNOLOGY INTEGRATES WITH GPS TO KEEP SCANS TRUE TO LOCATION
  • SELECT AUTO, MANUAL OR CONSTANT SCANNING MODES



360-DEGREE ONEVÜ™ SONAR
Unlock the toughest underwater hiding spots with OneVü sonar, the crisp, clear 360-degree underwater imagery in 2D or 3D views.

LARGE COVERAGE AREA
Scan and store up to a football-field size of imagery in a single power cycle. True Motion technology keeps your true location as you move within the scanned area.

CHARTPLOTTER INTEGRATION
Optimize your sonar from your compatible Garmin chartplotter with on-screen controls that let you change scanning modes, adjust sonar frequencies and select vivid color palettes.

SIMPLE INSTALLATION

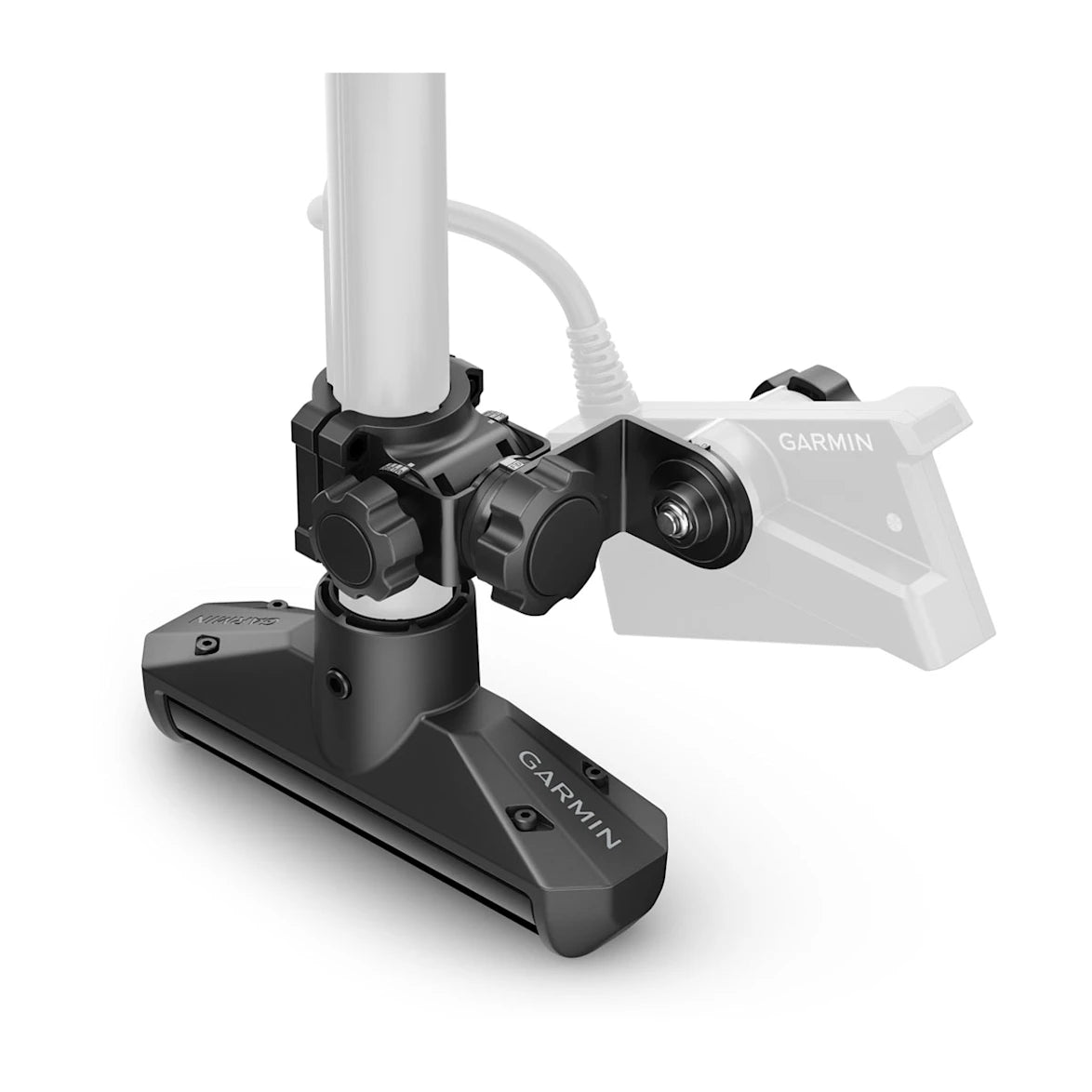

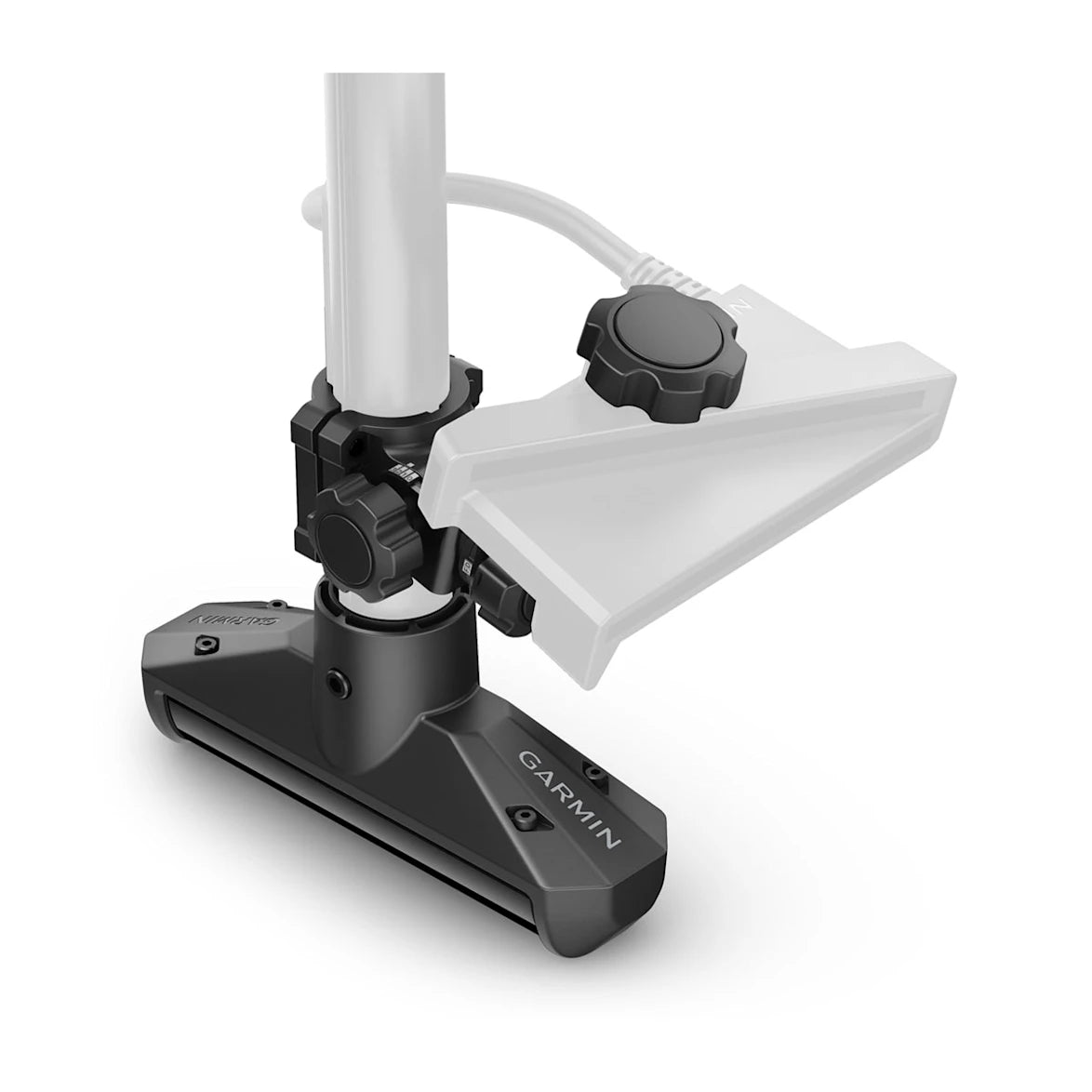

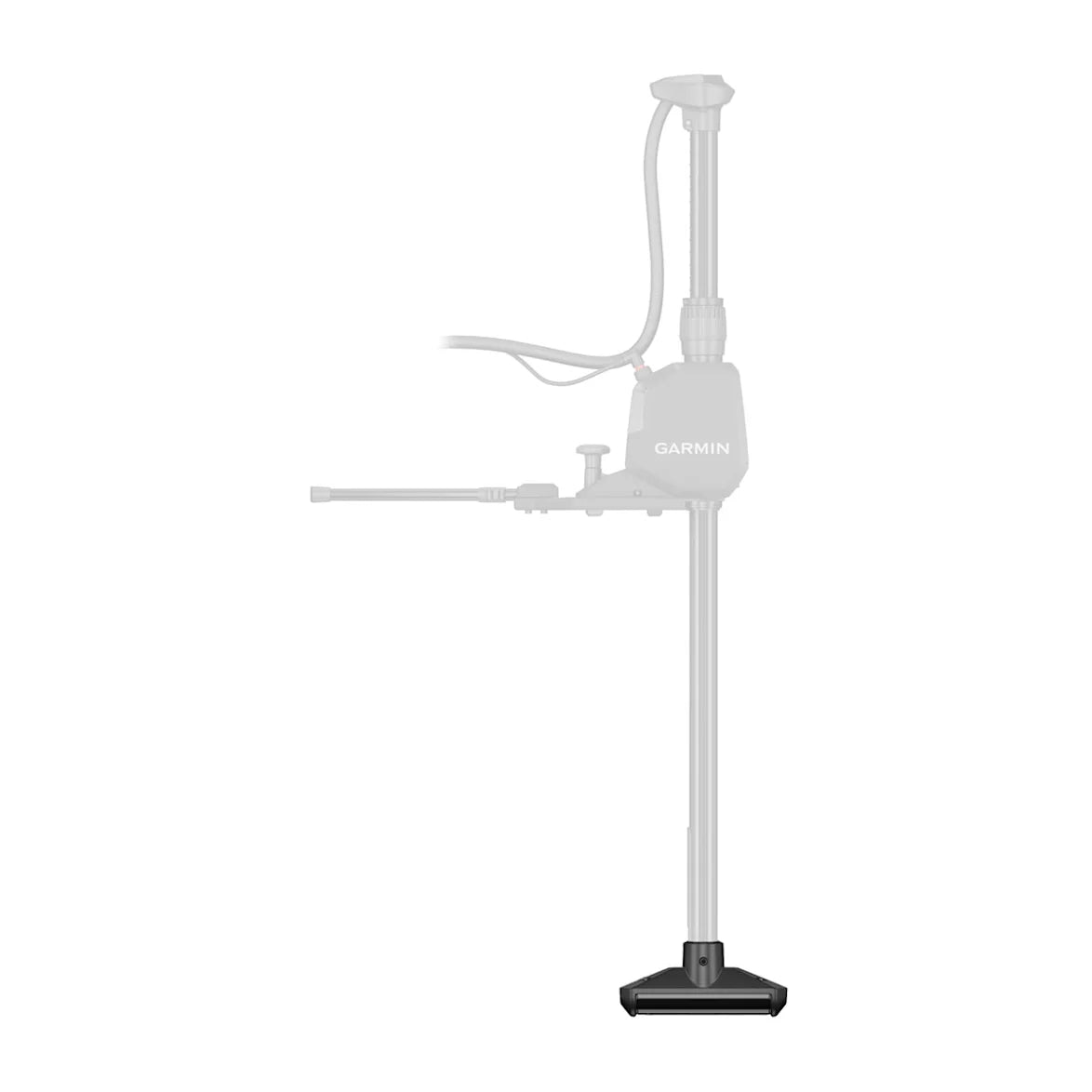

Easily mount your GT360UHD transducer onto your Spy pole and run your cables through the shaft.

ENHANCED ONEVÜ EXPERIENCE
Layer LiveScope live sonar over the OneVü sonar imagery to see an all-new 3D view — and a beam overlay to see where LiveScope is pointed in 2D mode.

MULTIPLE SCANNING MODES
Use your compatible Garmin chartplotter to select the scanning mode that best fits your style of fishing. Choose between auto, manual or constant scan.

AUTO SCAN
Automatically trigger a new scan when your boat travels to a new area.

MANUAL SCAN
Capture data only from the areas you want by manually initiating your scan.

CONSTANT SCAN
Continually scan your boat’s surroundings for consistent data updates as you move.



SPECS

General
Transducer frequency OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Transducer power 500 W
Transducer beamwidth OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth OneVü/SideVü: 500 ft range
Transducer cable length 20.3 ft (6.2 m)
Transducer depth/speed/temperature Depth and Temperature
Transducer number of pins 12
OneVü Source
Dimensions (with mount; LxWxH) 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8")

Transducer Support
Transducer frequency OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz





IN THE BOX

  • GT360UHD 12-pin transducer
  • GT360UHD transducer mount for Spy™ Pole

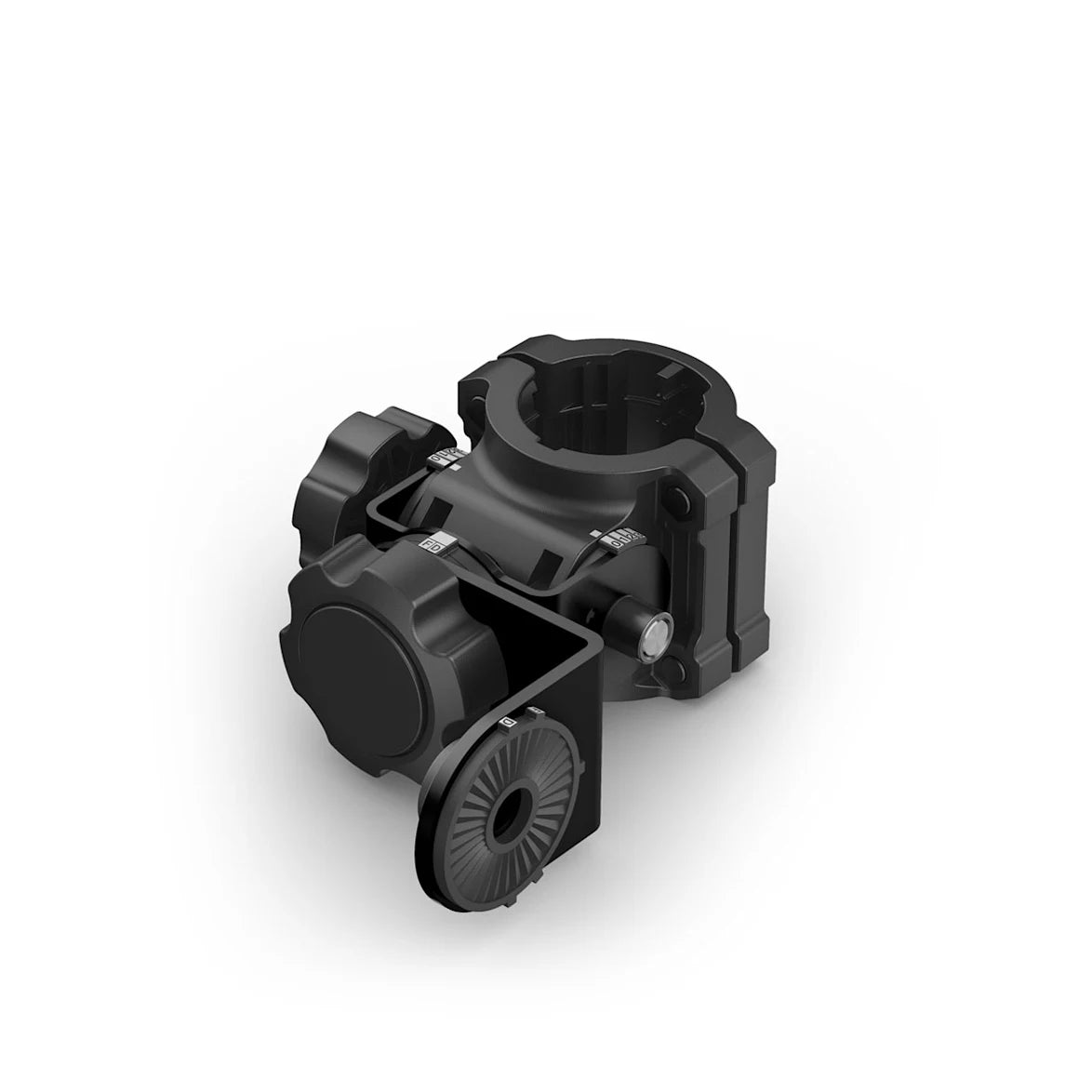

  • LiveScope™ adjustable perspective shaft mount
  • Dogbone stabilizer
  • Mounting hardware
  • Documentation
