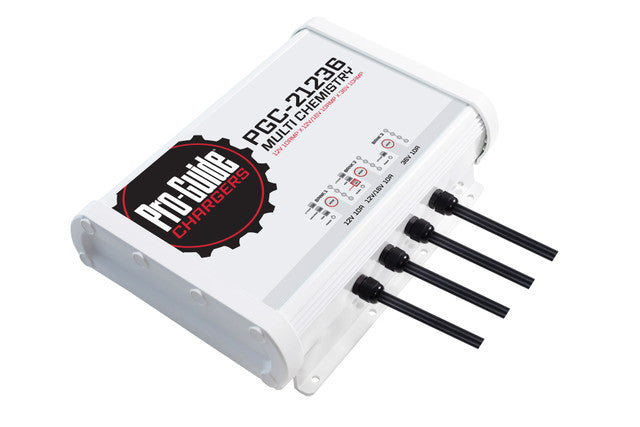

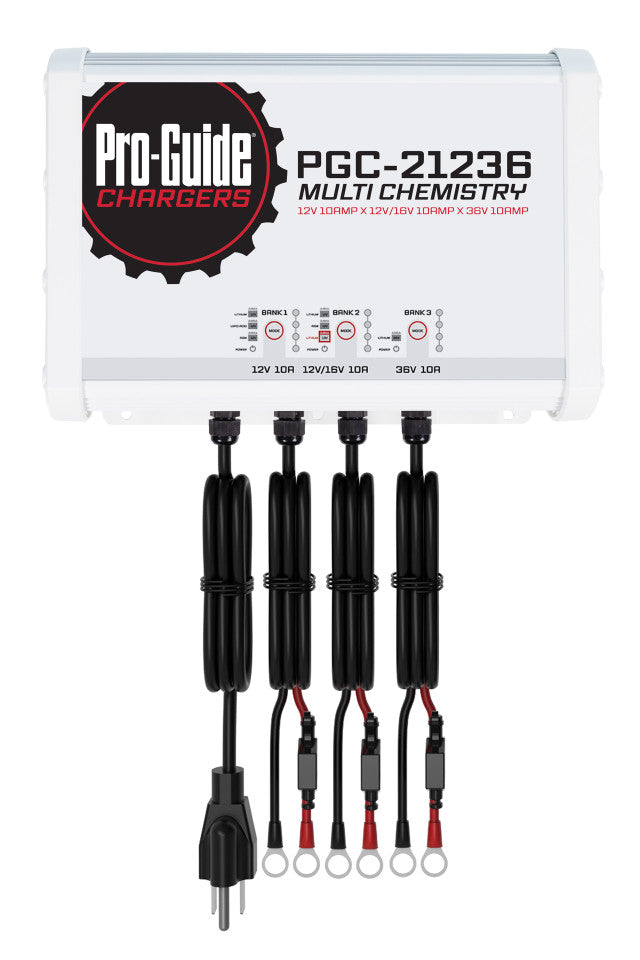

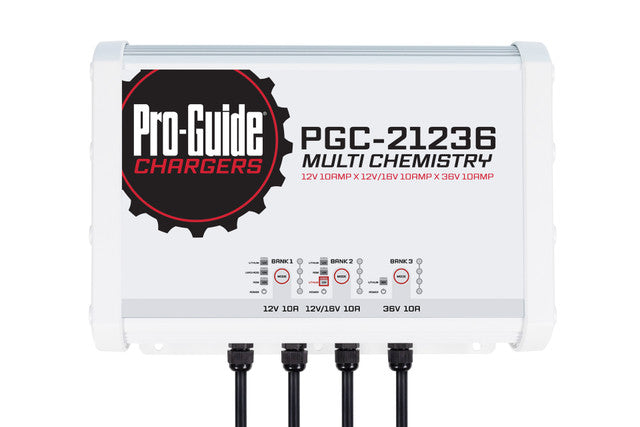

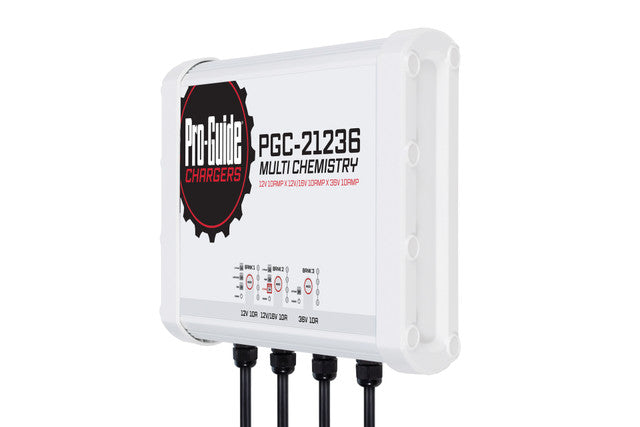

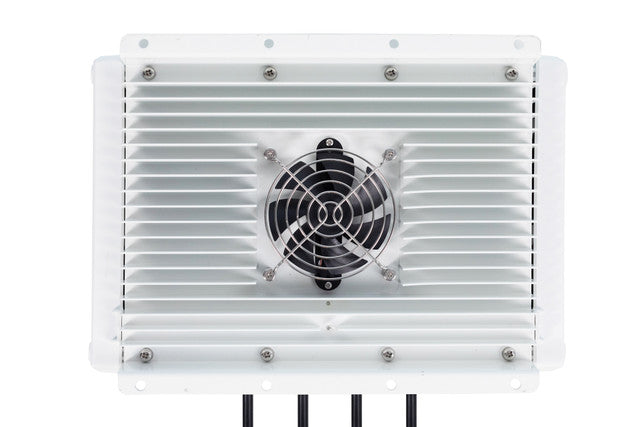

PGC-21236 | 12V 1-Bank 10-Amp, 12V/16V 1-Bank 10-Amp & 36V 1-Bank 10-Amp, On-Board Battery Charger

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE // 16V LITHIUM // 36V LITHIUM

Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V charging bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Protection:

- Output Over-Voltage

- Output Over Current

- Output Short Circuit

- Output Reverse Polarity

- Over Temperature

Input:

- Input Voltage: AC 110-120V

- Frequency: 60Hz

- Input Current: <6A
