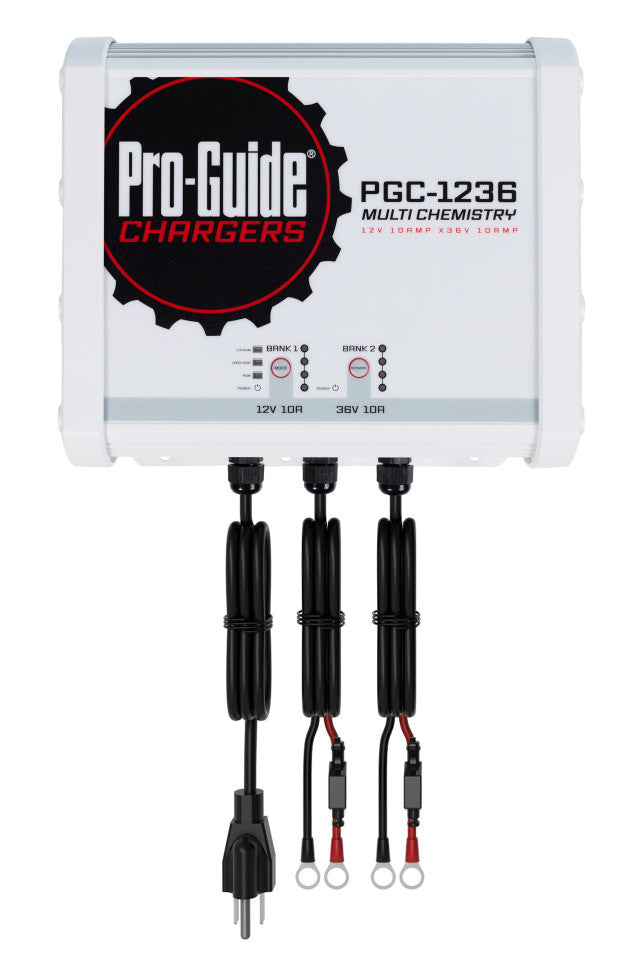

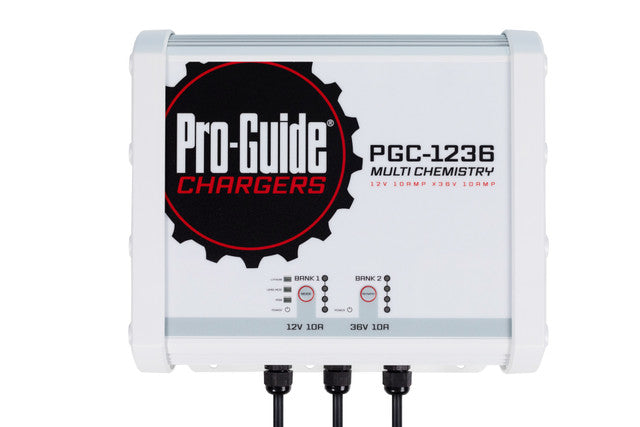

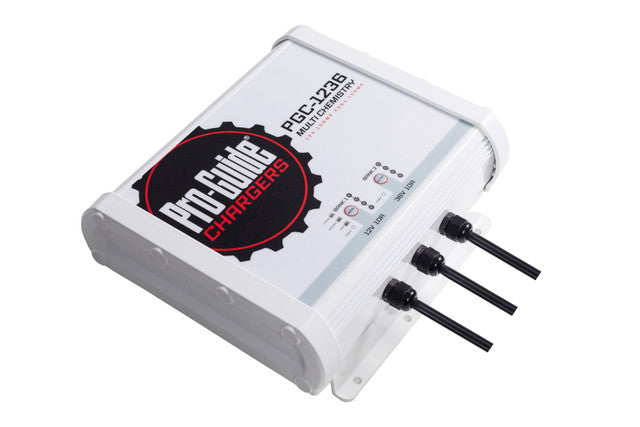

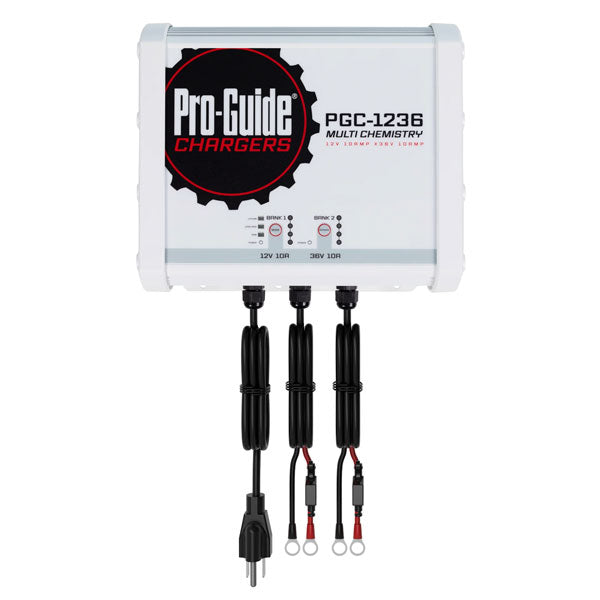

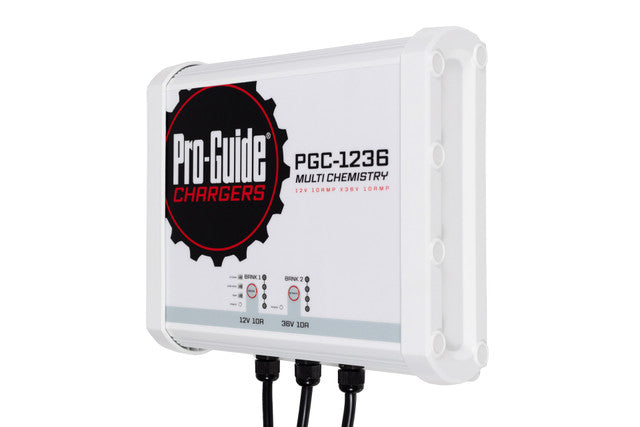

PGC-1236 | 12V 1-Bank & 36V 1-Bank, 10-Amp On-Board Battery Charger

The Pro-Guide PGC-1236 is a 12V Lead Acid / AGM / Lithium & 36V Lithium on-board battery charger.

12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE // 36V LITHIUM

Each 12V Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a Single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Model: PGC-1236

Battery Type: 12V Lead Acid / AGM / Lithium & 36V Lithium

Output Voltage: DC 12V x 1 & DC 36V x 1

Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery, & 43-44 for 36V Lithium Battery

Output Current: 10A

Dimensions (mm): 35mm x 32.7mm x 16.7mm

Dimensions (inch): 13.78in x 12.88in x 6.57in

Weight: 17.9lbs / 8.1kg

IP Rating: 68

Protection:

- Output Over-Voltage

- Output Over Current

- Output Short Circuit

- Output Reverse Polarity

- Over Temperature

Input:

- Input Voltage: AC 110-120V

- Frequency: 60Hz

- Input Current: <6A
