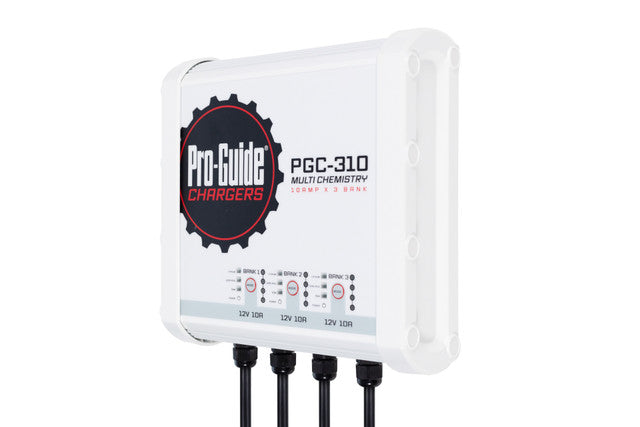

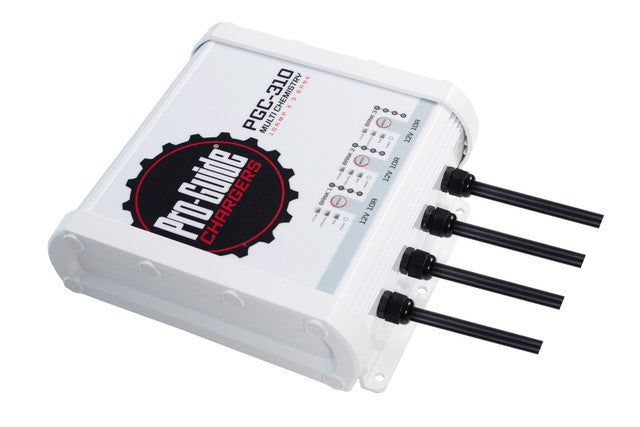

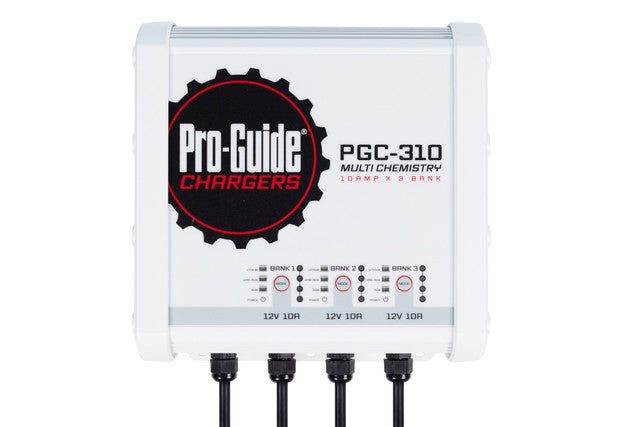

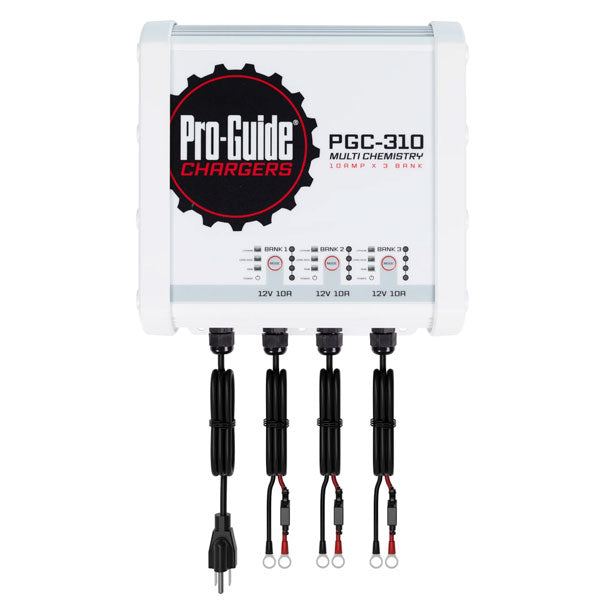

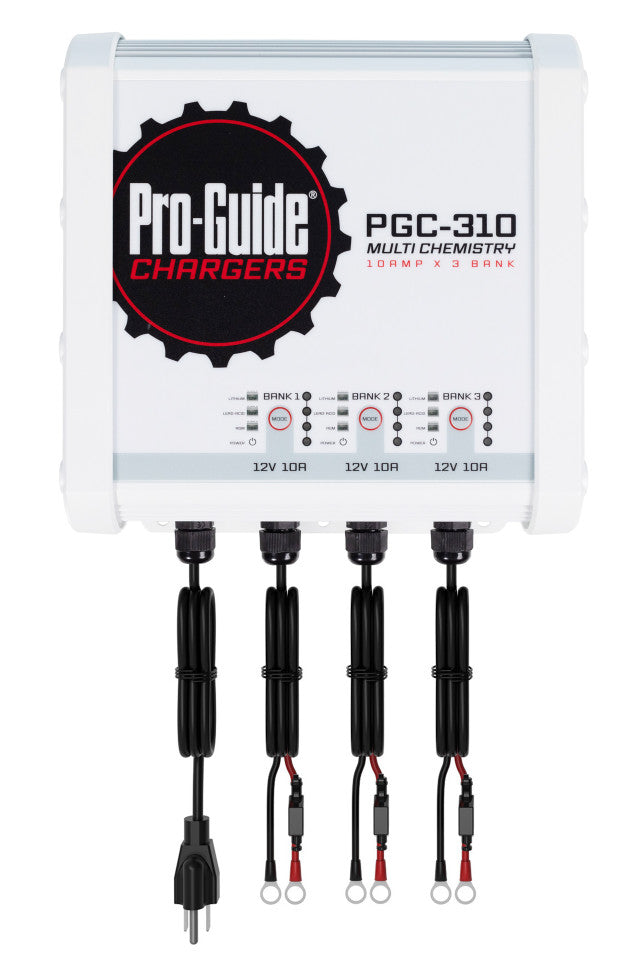

PGC-310 | 12V 3-Bank, 10-Amp On-Board Battery Charger

The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE

Each Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.

Model: PGC-310

Battery Type: Lead Acid / AGM / Lithium

Output Voltage: DC 12V x 3

Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery

Output Current: 10A

Dimensions (mm): 34.5mm x 29.5mm x 16.7mm

Dimensions (inch): 13.6in x 11.6in x 6.57in

Weight: 15.9lbs / 7.2kg

IP Rating: 68

Protection:

- Output Over-Voltage

- Output Over Current

- Output Short Circuit

- Output Reverse Polarity

- Over Temperature

Input:

- Input Voltage: AC 110-120V

- Frequency: 60Hz

- Input Current: <6A
